Mountain Howitzer "Quill Fuse"

Cannon Fuse Kit - makes 100 "Quill Fuses"

...by: Buck Stix

***************************************************

MAKE YOUR OWN CANNON FUSE - QUILL FUSE KIT

***************************************************

Build a Mountain Howitzer - Cannon Blueprints, Cannon Plans, Carriage Blueprints, Carriage Plans, Barrel Blueprints, Barrel Plans.

$    YOU  SAVE  HUNDREDS of DOLLARS    $

$   MAKE  CANNON  FUSE  -  QUILL FUSES   $

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

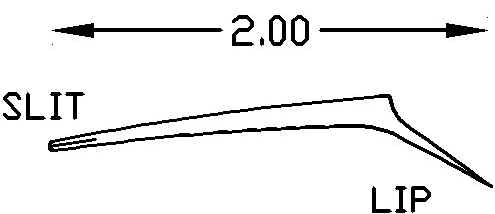

Period Quill Fuses  (artillery fuse) was originally made using the tips of goose feathers, hence the name quill fuse.  The feather quill was cut-off  2 inches long.  The open end top portion of the quill fuse was cut-open and  flattened, forming a lip.  The closed tip of the quill fuse was slit lengthwise 1/4".  ( photos below show cannon fuse quill )

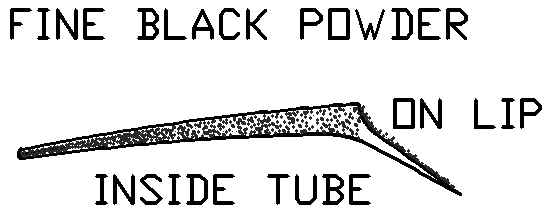

The hollow tube of the quill fuse was filled with fine black powder.  The lip portion of the quill fuse was coated with adhesive and then dipped into black powder.  The adhesive on the lip of the cannon fuse not only held the black powder on the fuse face, but also served to seal the top end of the fuse tube. The slit in the tip of the quill fuse would allow flames to shoot out when lit, but stayed closed and kept the powder from leaking out.  ( photos below show cannon fuse - real quill fuse )

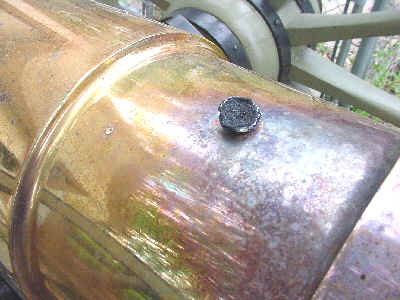

Modern Quill Fuses  from our kit are made using a paper straw.  The paper straw quill fuse has a large "circular" lip.  The quill fuse tube is filled with fine black powder, and the circular quill fuse lip portion of the quill fuse is coated with adhesive and dipped into black powder.  The adhesive on the fuse lip holds the black powder on its face and also served to seal the top end of the fuse tube. The bottom of the fuse tube is pinch glued which allows flames to shoot out when lit, but stays closed and keeps the powder from leaking out.  (finished fuse length = 2" = 1/2 sec. burn)

( photos below show modern paper straw cannon fuse - quill fuse - 2" long )

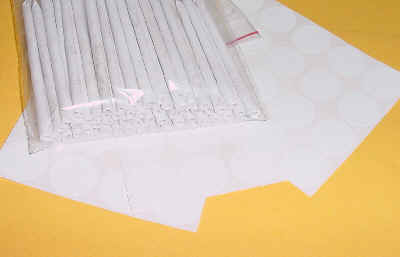

Quill Fuses will work with any cannon with a 0.18 inch or larger vent.  They provide a "hot jet flame" into the cannon chamber.  Our kit contains materials for 100 Cannon Fuse with easy to follow step-by-step instructions.  (straws shipped in 8" length - you cut the straws to final length of 2-5/8")  All that's needed is a pair of scissors, the glue, and the 4Fg black powder.  Specified glue for making Cannon Fuse is available at any office store.  ( photo shows paper straw Cannon Fuse kit )

100 Quill Fuses cost only pennies and are reliable and easy to make.  Our Cannon Fuse kit is in stock and ready to ship, today.

in addition:

SPECIAL - FOR  A  LIMITED  TIME  ONLY

ORDER NOW - GET A FREE DETAIL DRAWING OF A 12 POUND MOUNTAIN HOWITZER BREECH SITE WITH ANY ORDER BELOW

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Quill Cannon Fuse Kit - Instructions  ..... only $1.95  plus $2 p&h

                    < CLICK TO ORDER INSTRUCTION SHEET

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Quill Cannon Fuse Kit - makes 50 fuses  ..... only $4.95  plus $3 p&h

                    < CLICK TO ORDER 50 COUNT FUSE KIT

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Quill Cannon Fuse Kit - makes 100 fuses  ..... only $9.95  plus $4 p&h

                    < CLICK TO ORDER 100 COUNT FUSE KIT

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

PLEASE NOTE - SHIPPING RATES ARE FOR U.S. SALES ONLY

FOR SALES OUTSIDE THE U.S. - CONTACT US FOR SHIPPING PRICE

BUY A KIT BEFORE ? NEED EXTRA SUPPLIES ? ORDER BELOW

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Quill Cannon Fuse Disks 100 count - makes 50 fuses  ..... only $4.95  plus $4 p&h

                    < CLICK TO ORDER EXTRA DISKS

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Quill Cannon Fuse Tubes - makes 100 fuses  ..... only $4.95  plus $4 p&h

                    < CLICK TO ORDER EXTRA TUBES

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

***************************************************

(over-size straws must be cut to final length to make count)

***************************************************

PLEASE NOTE - SHIPPING RATES ARE FOR U.S. SALES ONLY

FOR SALES OUTSIDE THE U.S. - CONTACT US FOR SHIPPING PRICE

PAY  DIRECTLY  Through   PAYPAL

( use  the  button  above )

***************************************************

or  mail  payments / payable to:

Buck Stix  -  PO Box 3  -  Neenah, WI  -  54957-0003

***************************************************

NOW  GO  TO  THE  APPROPRIATE  WEB  PAGES

TO  SEE  HOW  I  BUILT  MY  OWN

MOUNTAIN  HOWITZER

USING THESE CANNON PLANS

CLICK ON PICTURES

ANY  QUESTIONS ? ?  e-mail  questions  to:    BUCKSTIX@AOL.COM

Cannon Blueprints, Cannon Plans, Carriage Blueprints, Carriage Plans, Barrel Blueprints, Barrel Plans are in stock ready to ship.

Next see how we built the Mountain Howitzer >> CANNON
